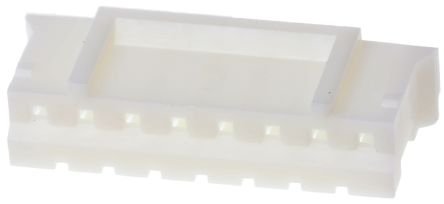

JST, PHR Female Connector Housing, 2mm Pitch, 8 Way, 1 Row

Description

The JST PH Series Female Connector Housing is designed for reliable, compact, and high-performance wire-to-board connections in electronic applications. With 16 positions in a single row and a 2.0mm pitch, this housing ensures precise alignment and secure mating with compatible JST PH male connectors. Its durable construction provides long-lasting electrical performance while protecting contacts from damage, making it an excellent choice for compact and high-density systems.

Key Features & Benefits:

1. Compact 2.0mm Pitch Design
   Ideal for space-constrained PCB layouts, delivering reliable connectivity in small electronic assemblies.

2. 16 Positions in Single Row
   Supports multiple signal connections while maintaining a compact footprint for high-density wiring applications.

3. Precise Alignment & Secure Mating
   Ensures consistent and safe connections with JST PH male connectors, reducing risk of misalignment or poor contact.

4. Durable Construction
   Protects contacts from mechanical damage and provides stable electrical performance over long-term use.

5. Wide Application Range
   Suitable for consumer electronics, industrial devices, communication equipment, and other compact electronic systems.

Applications:

• Consumer electronics

• Industrial and automation equipment

• Communication devices

• Wire harnesses and PCB connections

• Compact electronic assemblies

Specifications:

• Series: JST PH

• Connector Type: Female Connector Housing

• Pitch: 2.0mm

• Number of Positions: 16

• Rows: Single Row

• Mounting Type: Wire-to-Board

The JST PH Series 16-way Female Connector Housing is a reliable solution for designers and technicians who need compact size, secure mating, and consistent electrical performance in modern electronic systems.
